Overview
Choose flat-faced stock or a covered profile before specifying the film.

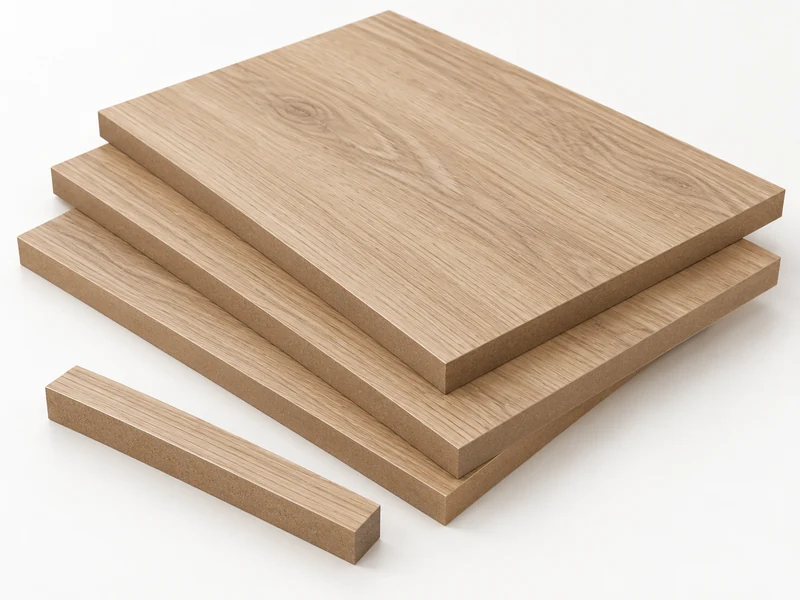

A flat PVC-faced sheet is cut and edged after facing. A continuous film over a routed recess requires the profile to be machined before covering and a suitable film, adhesive and forming process. These routes have different delivered edges and remaining workshop operations.
Flat sheets are cut and edged in the workshop. A continuous film over a routed door profile needs a film and forming process selected for that shape. Use the surface comparison for HPL or melamine alternatives; use PET MDF when PET is the specified film.
Applications
What will your PVC MDF become?
Cabinet and wardrobe fronts
Coordinate adjoining doors and drawer fronts with the same decor reference. Mark grain direction, reverse finish, edge treatment and hinge positions before choosing the panel.
Furniture components
Organise decorative panels by the finished piece and visible face. Trial cutting, edging, joints and hardware using the board construction planned for your production.
Interior furniture packages
Connect reception fronts, storage units and display furniture through a shared finish schedule. Include the part sequence, supporting frame, joints and cleaning conditions.
Specifications
Supply specifications
Sheets to the selected facing
The usable film width and pattern direction determine the faced-sheet layout. Specify delivered width × length and the finished thickness target.
Parts to your drawing
List completed part sizes, quantities, visible edges and direction. Keep core dimensions separate from finished dimensions after facing and edging.
| Finished thickness | Made to the finished target; MDF core + PVC face + reverse + bonding layersDiscuss finished thickness and tolerances → |
|---|---|
| Core / substrate | MDF; select standard board for dry interiors or MR / HMR board for humid interiors |
| Surface finish | PVC film; single-sided or double-sided; decor, texture and sheen selected by film reference |
| PVC film gauge | Selected by film reference and processing grade; specified separately from MDF core thickness |
| Faces & reverse | Single or double PVC faces; a single decorative front includes a named reverse or backer |
| Sheet or component format | Made to the dimension schedule; usable film width, grain direction and part layout determine the faced format |
Details for your application
Panel construction and finishing
| Film gauge and appearance | Gauge belongs to the selected PVC film reference. Choose colour or woodgrain, texture, sheen and processing grade; keep its film data with the panel item. |
|---|---|
| Faces and reverse | PVC on one or both faces. A single decorative front includes a specified reverse or backer in the complete panel construction. |
| Finished thickness and format | Set a finished target and full-sheet or part dimensions. Select the MDF core, film gauge, reverse and bonding build-up; usable film width and direction govern the faced sheet layout. |
| Processing route | Flat sheets are cut and edged. Continuous coverage over a routed profile needs a separately specified film, adhesive and forming process; attach the profile drawing. |
| MDF substrate | Choose standard MDF for dry interiors or MR / HMR for humid interiors; identify the core grade and emission method independently of the PVC face. |
Set the finished target; identify each layer
For a flat panel, finished thickness = MDF core + PVC front + reverse + bonding layers. Film gauge comes from the selected film reference. Its usable width and grain direction determine how the sheet or part layout fits.
Order full sheets by delivered width × length, or parts by a numbered component schedule. A profile also needs its depth, corners, radii and covering route. The quotation lists the film gauge, core, reverse and completed dimensions for that item.
| PVC face | Film reference, thickness, decor, texture, sheen and grain direction, with the intended processing route. |
|---|---|
| MDF substrate | Core grade and thickness, emission class and test method, matched to the intended environment. |
| Finished dimensions | Total panel thickness and tolerance; full-sheet format or a component schedule with drawing revisions. |
| Reverse | Single-sided or double-sided PVC; name the back treatment, finish reference and layer construction. |
| Edges and detail | Separate edging or a specified forming detail; corner, joint and exposed-edge positions. |
| Delivered scope | Sheets for your workshop, or the component preparation you want discussed in the quotation. |
Begin with the item you want delivered.
Scroll horizontally to compare all columns.
| Requested item | Details to include | Workshop work to identify |
|---|---|---|
| Flat PVC-faced sheet | Requested sheet format, finished thickness, film reference, one or two faces and the reverse. | Cutting, edge banding, holes, hardware and assembly after delivery. |
| Blank or profiled part for later covering | Part drawing, MDF core, machining, surface preparation and intended film/forming route. | Who will apply the film, trim it, finish the reverse and complete the part. |
| Finished film-covered component | Complete dimensions, profile, film identity, covered faces, reverse, fittings and finish reference. | Included processing, assembly and any remaining operations at your workshop. |
Choose the substrate separately: CUZI’s standard MDF range is 2.5–35 mm; MR / HMR MDF is 9–25 mm for humid interiors. These are bare-board ranges. The finished panel combines the selected core with the front, reverse and bonding layers. Choose the core within the finished construction; each facing does not automatically cover every bare-board thickness or format.
Configuration
Choose the finishing sequence before cutting
Routing through a faced sheet removes the PVC in that feature. For a continuous film over a recess, the profile is machined before covering. Select the appropriate film grade, adhesive and process with the actual section drawing.
RENOLIT’s processing overview distinguishes flat lamination, wrapping and three-dimensional thermoforming. These process categories guide material selection; the proposed item identifies the operations included in your order.
Choose the purchase route for your finished front.
Start with the item you want delivered. Each route keeps the film, reverse, drawing and workshop operations together in your request.
Scroll horizontally to compare all columns.
| Buying decision | Compare before ordering | Your next step |
|---|---|---|
| Flat sheet with an edged corner | Trial the actual PVC face, cut edge, selected band, corner joint and reverse. Include hinge or pocket details and the total finished dimension after edging. | Trial the flat edged part |
| Continuous film over a profile | Send the recess, inside corner, radius and return drawing. Review the chosen film and bond around the complete profile, reverse and trimming detail with the proposed forming route. | Trial the formed profile |
| Film and component data | Request the actual film grade, gauge and relevant surface or processing methods. Keep the MDF emission method and complete finished-part fit on separate lines. | Request film and panel data |
| An adjoining furniture set | Use the 120-set schedule below: 240 door blanks plus 480 drawer blanks. Add direction, matching, machining allowances, selected spares and supplied operations before comparing sheet or component prices. | Quote 120 furniture sets |
The 18 mm links use a requested finished drawing dimension; actual core, film, reverse and bonding gauges are identified in the offer. Flat sheets, uncovered profiled blanks and complete film-covered parts carry different processing scopes. Keep the selected scope with the item price and sample reference.
Quantity example: 120 door and drawer sets
For a planned run of 120 furniture sets, each with two 450 × 720 mm rectangular door blanks and four 450 × 180 mm drawer-front blanks, the schedule below calculates the part quantities and net blank area. It excludes cutting gaps, edge trim, machining allowances, defects and a production reserve.
Scroll horizontally to compare all columns.
| Component blank | Per set | Total quantity | Area per blank | Total blank area |
|---|---|---|---|---|
| Door · 450 × 720 mm | 2 | 240 | 0.324 m² | 77.76 m² |
| Drawer front · 450 × 180 mm | 4 | 480 | 0.081 m² | 38.88 m² |
| Complete run | 720 blanks | Before process allowances | 116.64 m² | |
These figures describe blank demand, rather than the sheet order. Send the complete list with requested sheet dimensions, direction restrictions and the allowances required by your process. The cutting plan and proposed formats will determine purchased sheets and usable component cost.
If the listed sizes are completed wrapped or edged dimensions, prepare the actual core or blank sizes from the drawing before nesting. Group adjoining pieces by set and mark any pattern sequence that prevents independent rotation. Carry those groups into pack labels so the workshop can assemble the finish you selected.
For humid interiors, specify MR / HMR in the core description and protect exposed edges, cut-outs and joints. A decorative face does not make MDF waterproof. Use the selected facing and adhesive system’s service and cleaning instructions with the completed component.
Documents
PVC film, substrate and completed-part information
Keep three sets of information together: film identity and processing instructions; MDF grade and emissions; completed dimensions and relevant finished-panel tests. A film data sheet and a RAW MDF report cover different materials.
Ask for the data that answers the component question.
Scroll horizontally to compare all columns.
| Component question | Material information | Keep with the drawing |
|---|---|---|
| Will the finish match the furniture range? | Exact PVC reference, colour, texture, sheen and direction. | Physical finish, neighbouring fronts, edge reference and viewing conditions. |
| What will the surface encounter? | Relevant scratch, stain, cleaning, heat or other named test data and care instructions. | The intended use and exposure, plus the requested test method and acceptance criteria. |
| How will the film cover the detail? | Film grade and gauge, bonding system and processing instructions for the intended route. | Profile, corner and radius, forming sequence, reverse and trimming detail. |
| How will the complete part fit? | Core identity, completed thickness, dimensional tolerance and flatness requirement. | Part size, reference face, pockets, joints, supports and fittings. |
| Which market documents are needed? | Substrate emission method and any finished-system or project documents requested. | Destination, application and the actual panel construction. |
Product data & reports to request
Request a technical data sheet covering:PVC identity and thickness, surface reference and processing instructions; identify the MDF core, front, reverse, adhesive and finished dimensions.Include these specification details:- PVC film identity, thickness, decor and relevant surface properties
- MDF board designation, core thickness, density, tolerances and emission method
- Face/back references, bonding system and complete finished construction
- Processing, storage, cleaning and intended-use instructions
Company documents to view
FSC chain of custody Wood panels · purchase & salesISO 9001 & ISO 14001 Management systems · stated sales activitiesView our company certificates alongside the technical data for your selected panel.PVC faced MDF requirements: what to match
- Film and construction
- PVC identity and thickness, surface reference and processing instructions; identify the MDF core, front, reverse, adhesive and finished dimensions.
- US destination
- Request TSCA Title VI documentation for the covered MDF substrate, including producer/product identification, third-party certification or applicable exemption documentation and labelling details.
- European furniture & other markets
- For European furniture and wood-based articles, request emission documentation against the applicable REACH Entry 77 / Appendix 14 conditions. Identify the offered substrate and finish; include any additional destination or project requirement.
US & EU document checklistProduct + destination
Your panel specification. PVC-faced MDF: film reference, MDF grade and producer, adhesive, reverse and finished panel thickness.
Thickness: Made to the finished target; MDF core + PVC face + reverse + bonding layers.
US
Covered MDF substrate and fabrication records for the PVC-film construction.
Request US documentsEU
Selected film, bonding system, reverse, edge treatment and intended article.
Request EU documentsInclude any forming, routing or coating step that changes the panel or finished component.
BEFORE YOU ORDER
Ordering information
- Minimum order
- 1 container
- Production time
- 7–15 days
- Samples
- Free samples
- Delivery terms
- FOB Qingdao / Lianyungang
USD 255–410 / m³ FOB Qingdao / Lianyungang
CUZI · Available to order · Raw materials in stock
Made to order · Production: 7–15 days · Warranty: 180 days
Container shipping by sea. Custom specifications and sizes available; ocean freight quoted separately.
Sample freight & order notes
- Minimum order: Mixed loads available.
- Production time: Made to your order; sea transit is additional.
- Samples: Buyer pays freight; full credit on a formal order.
- Delivery terms: Container shipping by sea.
Quality & trial
Check an edged corner or the deepest profile
For flat board, trial cutting, trimming, edge banding and a hardware opening. For a covered profile, include the deepest recess, return and inside corner. Record the film, adhesive, core and reverse beside the completed dimensions and finish observations.
Download the material and component worksheet
| Check | What to record |
|---|---|
| Film and appearance | PVC reference and thickness; colour, texture, sheen, grain direction and retained physical sample. |
| Panel build-up | MDF grade and core thickness, front and reverse layers, adhesive and measured finished thickness. |
| Surface condition | Appearance under the intended lighting; visible marks, bond condition and any protective-film instructions. |
| Cut and edge | Tooling, trim condition, band or forming detail, corner joint and exposed core positions. |
| Component fit | Part size, flatness, hardware, joints, grain sequence and workshop trial observations. |
| Order reference | Selected finish/back codes, drawing revision, quantity, labels and requested technical documents. |
| Processing sequence | Flat lamination, specified wrapping or forming route; when routing, trimming, covering and edging take place. |
| Adjoining finish set | Door, drawer, side and edge references, grain arrows, set identity and the viewing conditions. |
| Substrate and finished target | Standard or MR / HMR MDF, core gauge, facing and reverse gauges, bonding layers, finished tolerance, usable format and measured completed dimensions. |
FAQ
PVC MDF questions for your buying team.
What is PVC faced MDF?
PVC faced MDF is MDF with a decorative PVC film on one or both faces. The film reference identifies its material gauge, decor, texture and sheen. The MDF core, reverse and bonding layers complete the panel construction.
Which PVC panel thicknesses and formats can I order?
PVC MDF is made to a finished thickness and sheet or part schedule. The total is the MDF core plus PVC, reverse and bonding layers; the selected film’s usable width and grain direction govern the faced format. State the finished target and component sizes, and the offer lists the core, film gauge, reverse and delivered dimensions together.
What film thicknesses and surface effects are available?
PVC film gauge and forming suitability belong to the selected film reference. Specify its colour or woodgrain, texture, sheen and intended flat or profiled process. The quotation identifies the offered film gauge with the MDF and reverse, while the physical sample establishes the finish.
Can the PVC face be on both sides?
Yes. Single-sided and double-sided PVC panels are available. For one decorative front, specify the reverse or backer as part of the panel. For two visible sides, identify both film references, directions and edges, then check the finished component for fit and flatness.
Can I choose an MR / HMR MDF substrate?
Yes. Specify MR / HMR MDF for humid interiors and standard MDF for dry interiors. CUZI’s bare standard MDF range is 2.5–35 mm and MR / HMR range is 9–25 mm. The selected core, PVC film, reverse and bonding layers determine the finished thickness; protect exposed edges and openings.
Is a PVC-faced sheet the same as a thermofoil door?
No. A flat PVC-faced sheet is board stock for subsequent cutting and edging. A film-covered profiled door is a component with a defined shape, film grade, adhesive and covering process. Choose the delivered item first, then specify the profile, reverse and remaining workshop operations.
Can I route the panel after it is faced?
Yes, but routing through the existing PVC removes the film and exposes MDF in that feature. Finish that area separately. For continuous film over a recess or return, machine the profile first and use a film and covering process suited to its depths, corners and radii.
Is PVC faced MDF waterproof?
No. A PVC face does not make the MDF panel waterproof. For humid interior furniture, use an appropriate MR / HMR core and protect joints, edges and openings. Follow the chosen film and adhesive system’s limits for heat, moisture and cleaning.
How do I match a door, drawer and edge?
Compare the selected film and edge samples together under the intended lighting. Mark grain arrows and adjacent fronts on the furniture elevation. Retain colour, texture, sheen and set numbers with the finished corner so the cutting and packing schedule preserves the selected appearance.
What should I include in a PVC MDF sample request?
For flat stock, include an edged corner and a representative hardware opening. For a covered profile, include the deepest recess, return and inside corner. Identify film, MDF, adhesive and reverse, then record the finished dimensions and observations in the sample worksheet.
Which reports describe a PVC MDF panel?
Use MDF data for the identified core and film data for the selected PVC. The bare-board report does not cover added film, adhesive or the finished component. Where the project requires finished-panel performance, use documents identifying that complete build-up and method.
Further reading: HPL vs Melamine vs PVC Faced MDF for Furniture Orders or Melamine decor and edge bands: approve the complete corner. Compare your shortlisted panels.
Request a quote
Show us the finish your next furniture range needs.
Start with a surface reference and the board sizes you have in mind. Add quantities and a destination, and we’ll work through the PVC panel options with you.
Open the PVC faced MDF inquiry outline
I would like a quotation for PVC Faced MDF. Application / destination: Finished panel thickness and tolerance (separate from core): PVC film reference / gauge / decor / texture / sheen: MDF: standard / MR-HMR; core thickness / emission method: Single or double decorative faces / reverse material and gauge: Sheet or finished part dimensions / direction / quantity: Edges / machining sequence / drawing revision: Sample component / surface and finished-panel documents: Packing / FOB Qingdao or Lianyungang / CIF destination / required date:Download the PVC MDF inquiry outline (.txt)
Mixed items and repeat orders
List each facing, reverse, finished thickness, size and processing scope as a separate item. Keep the selected finish and drawing revision with repeat orders; use the mixed-panel schedule for a coordinated container load.
Packing and receiving
Label packs by finish, size, quantity and component or matching set. Protect faces and edges. At receipt, check pack labels, dimensions and condition against the order before machining. Follow the material’s dry storage and conditioning instructions.
